High Capacity Refuelling Station

Bost Group have designed a High Capacity small footprint refueling station with all the features and benefits our refueling stations are know for, this unit has 4500 litre and 5000 litre tank options. With the 4500 Litre tank featuring built in IT hitch points to make loading and unloading as easy as possible.

Request a quote

Request a Quote

Please leave your details below & a team member will be in contact with you as soon as possible

Please enable JavaScript in your browser to complete this form.
Name

Features & Benefits

  • SOLID STEEL CONSTRUCTION

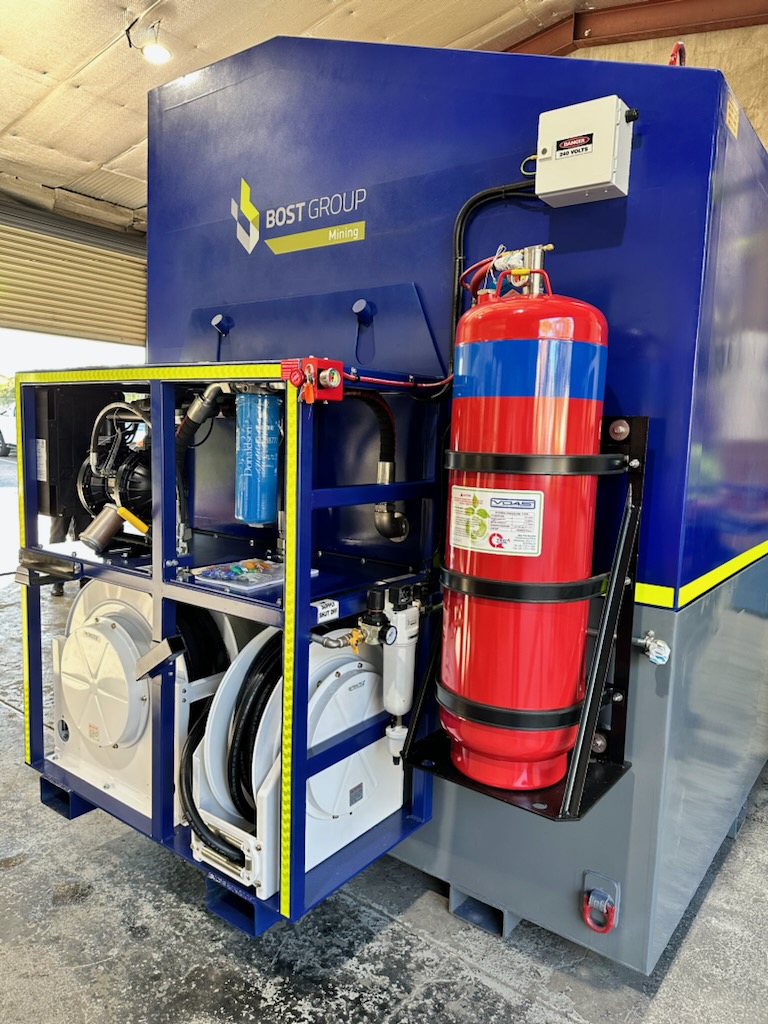

  • FIRE SUPPRESSION SYSTEM – AUTO & MANUAL ACTIVATION
  • FIRE ROLLER SHUTTER DOOR – AUTO ACTIVATION
  • DEAD MAN VALVE FOR FUEL OPERATION
  • LOW PROFILE, BUILT ON A GALVANIZED SKID BASE FOR EASE OF SHIFTING UNDERGROUND, ALSO PROVIDING GOOD OPERATOR VISION WHEN CHANGING TANKS.
  • TANKS BUILT TO COMPLY WITH AS1940 AND AS1962, AND SELF BUNDE□TO CAPTURE 150% OF CONTENTS – GREATLY REDUCING ENVIRONMENTAL RISK.
  • TANKS COME COMPLETE WITH CORNER PROTECTION AND ADDED PROTECTION AROUND THE FORK SLOTS
  • AVAILABLE IN 4500L and 5000L TANK OPTIONS

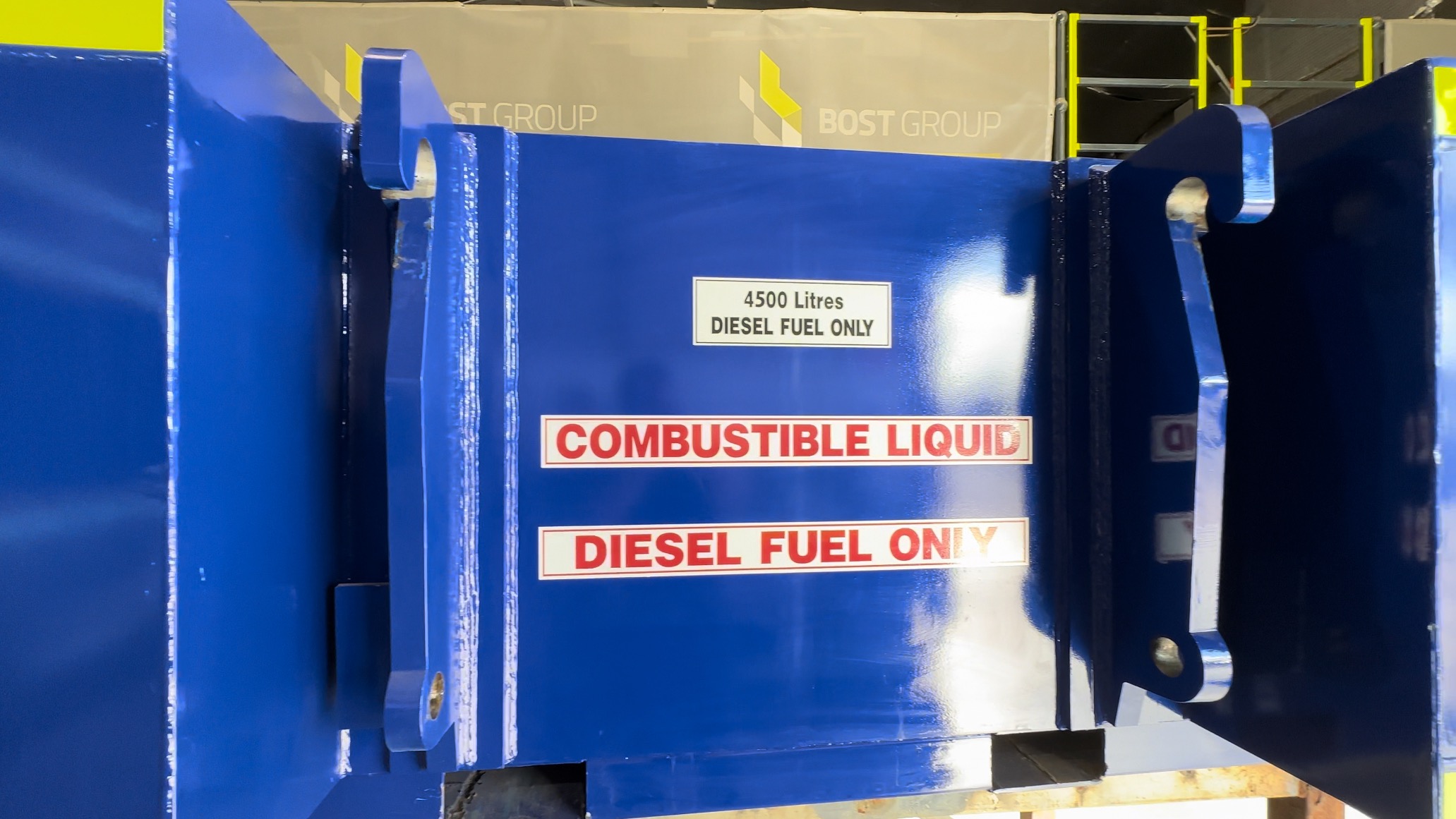

  • 4500L TANK WITH BUILT IN IT HITCH

Options

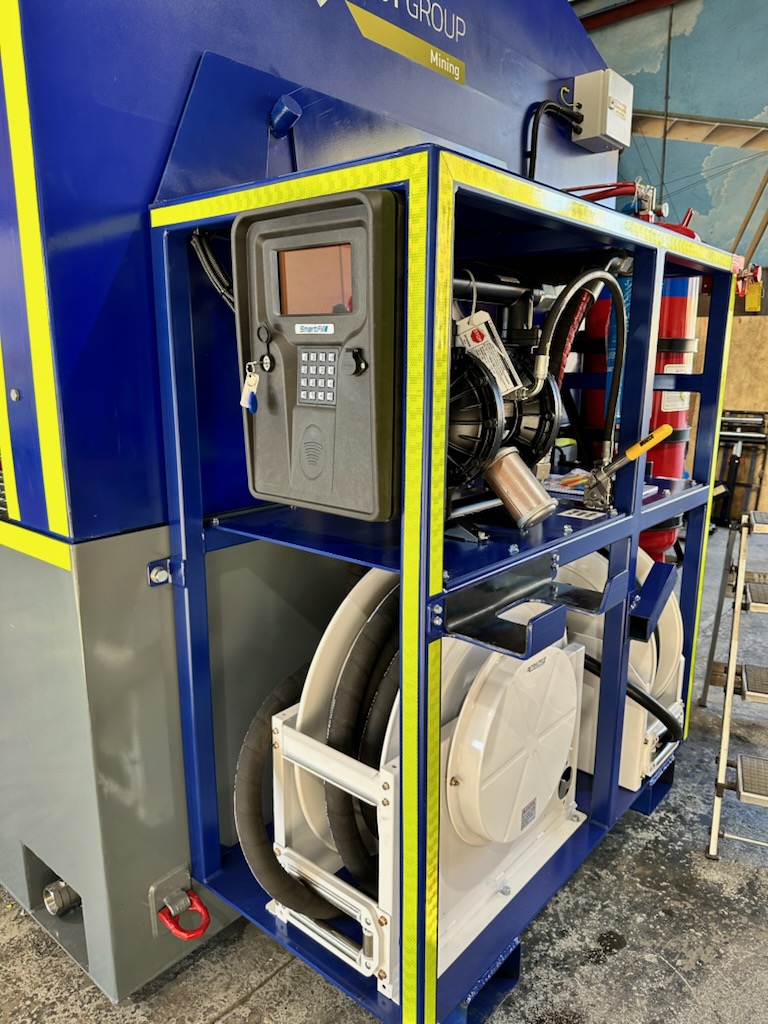

  • ELECTRICAL FUEL MANAGEMENT SYSTEM
  • FAST FILL NOZZLE WITH FLOW RATE OPTION – UP TO 300LPM
  • LV NOZZLE WITH FLOW RATE OPTION – 55LPM TO 200LPM

Specifications

SPECIFICATIONS HEIGHT WIDTH LENGTH WEIGHT CAPACITY
[MM) [MM) [MM) [KG) [LTR)
RSC99 SHELL 2900 2250 4138 4000
RSH 45 1020 2050 2700 1925 (Empty) 4500
RS 50 1020 2050 2700 1925 (Empty) 5000
